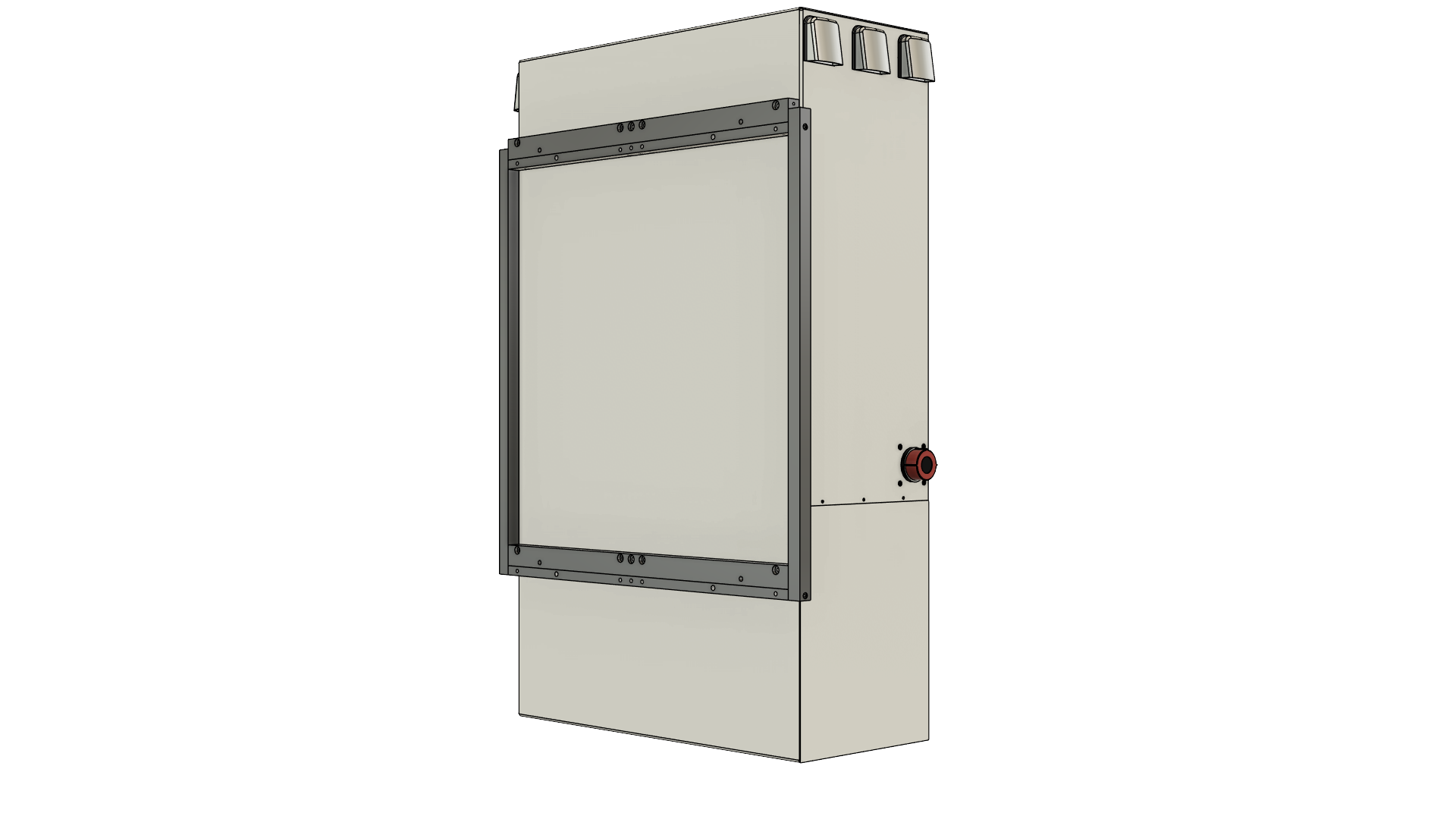

Guardian Elite™ Energy Storage System
The Guardian Elite is a premium all-in-one energy storage solution, featuring a robust 16kWh battery capacity paired with an integrated 15kW inverter. This versatile system can be mounted on walls or floors, making it ideal for both residential and small commercial applications in any space configuration.
The Guardian Elite is a premium all-in-one energy storage solution, featuring a robust 16kWh battery capacity paired with an integrated 15kW inverter. This versatile system can be mounted on walls or floors, making it ideal for both residential and small commercial applications in any space configuration.
The Guardian Elite is a premium all-in-one energy storage solution, featuring a robust 16kWh battery capacity paired with an integrated 15kW inverter. This versatile system can be mounted on walls or floors, making it ideal for both residential and small commercial applications in any space configuration.
Technical Specifications:
Battery Capacity: 16kWh (16,000 watts at 100% discharge)
Inverter Rating: 15kW Inverter/Charger
Voltage: 51.2V
Amperage: 314Ah
Battery Chemistry: Lithium Iron Phosphate with Graphite and Sodium mix
Grid Support: Grid-Tied/Off-Grid capabilities
Solar Integration: Up to 19.5kW Solar Charge Controller
AC Coupling: Up to 19.2kW
Physical Specifications:
Dimensions: 31" W × 48" H × 15" D
Weight: 500 lbs
Installation: Wall-mounted or floor-mounted options
Enclosure Rating: NEMA 3R Rated
Heat Rating: 1125°F
Security: Lockable enclosure
Smart Features:
Advanced Battery Management System (BMS)
WiFi-enabled remote monitoring
Cell-level monitoring capabilities
Real-time performance tracking
Electrical Specifications:
Main Panel Support: 100A to 200A
Voltage Compatibility: 120/208/240V
EV Charger Compatible
Multi-Unit Capable
Rapid Shutdown Compliant
Certifications:
UES Certified
Rapid Shutdown Compliant
UL Listed Components
Key Benefits:
Complete home backup solution
Time-of-use rate optimization
Solar integration ready
AC or DC Solar Capable
Advanced safety features
Remote monitoring and diagnostics
Flexible installation options
Scalable system design
